PQA 1500

Measurement and monitoring device for capturing, analyzing, and supervising all key electrical parameters in 3-phase low-voltage networks from 115 V to 690 V.

Advanced measurement functions help reliably monitor increasingly complex network conditions, thereby enhancing the reliability of your electrical system. The PQA is ideal for measuring active and reactive power in machine feeders within main low-voltage distribution boards. With network connectivity and FRAKO Bus interface, the PQA can be easily integrated into the FRAKO data acquisition system in accordance with EN 50001.

PQA 1500 – Versatile...

  • Measurement device for active and reactive power for individual machines/feeders
  • Energy data collection device with PQM
  • Successor to the EM-PQ 1500 for expansion/replacement
  • Integrated web server
  • Ethernet-based reading protocols (Modbus TCP, REST)

Universally applicable for:

  • Network monitoring for outlets and machines
  • Energy meter
  • Current-based overload disconnection (e.g., for wallboxes)

Key Features at a Glance:

  • Monitoring and assessment of power quality; measurement of all relevant data in low- and medium-voltage networks
  • Energy meter for active power (consumption and feedback) and reactive power
  • Integrated alarm management with various output configurations: contact outputs, display, LED
  • Connection to the FRAKO Energy Management System via FRAKO Power Bus (RS-485) and TCP/IP
  • DIN rail mounting
  • Retention of meter readings and limit values during power outages
  • Clear-text menu navigation and display of up to 8 measured values simultaneously
  • Menu-driven programming with user guidance

  • Voltages between phases/phases and phases to neutral
  • Currents of the 3 phases and N/PEN
  • cos φ, active, reactive, and apparent power of the phases
  • Frequency and asymmetry (load imbalance)
  • THD of voltage and current of the phases
  • Harmonic content of voltage/current U2/I2...U19/I19
  • Manual recording of voltage and current up to the 50th harmonic

  • Voltage
  • Current
  • Power (active, reactive, and apparent)
  • Network frequency
  • Voltage harmonics
  • Current harmonics
  • Temperatures
  • Measurement via three external current transformers

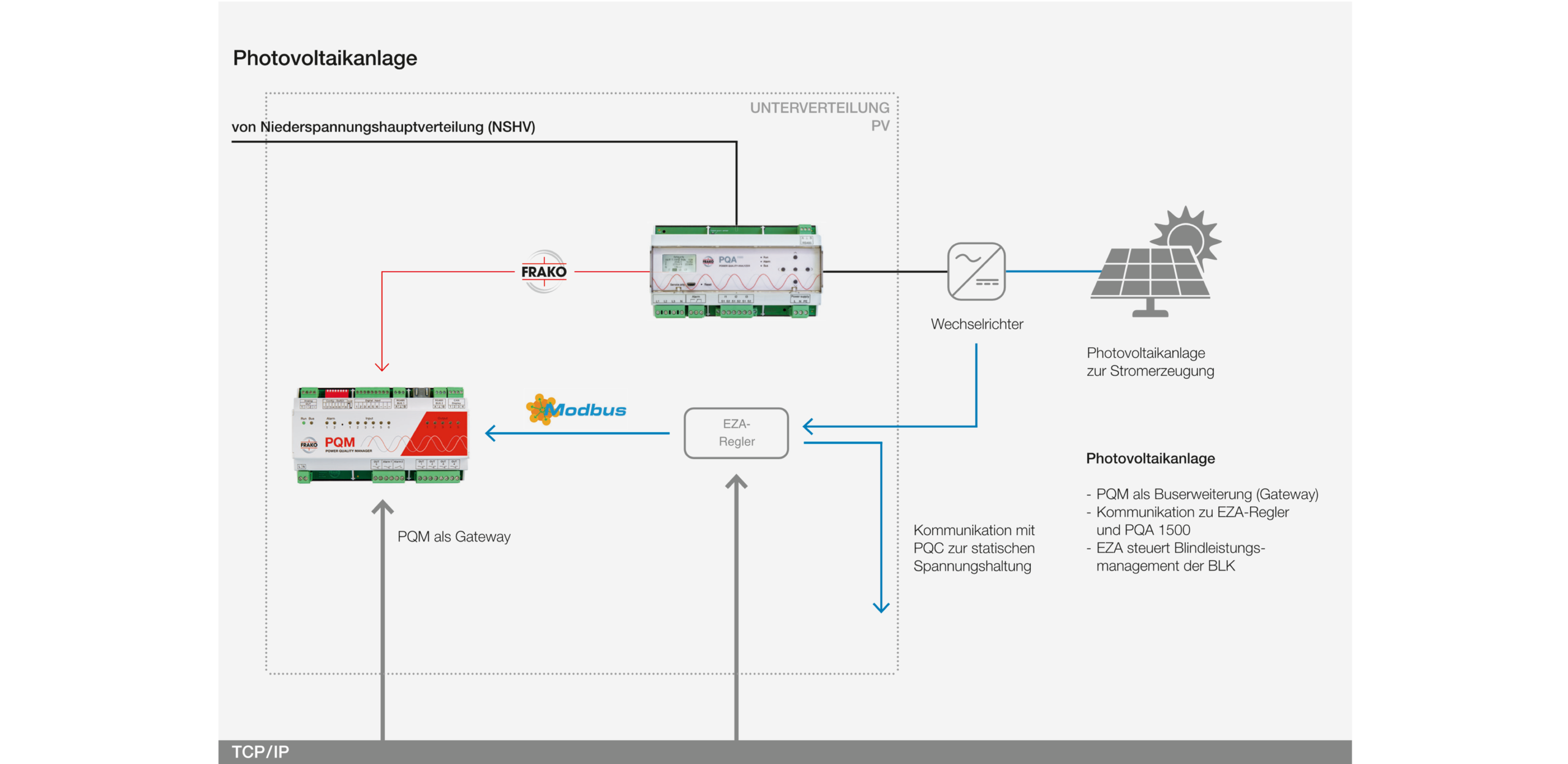

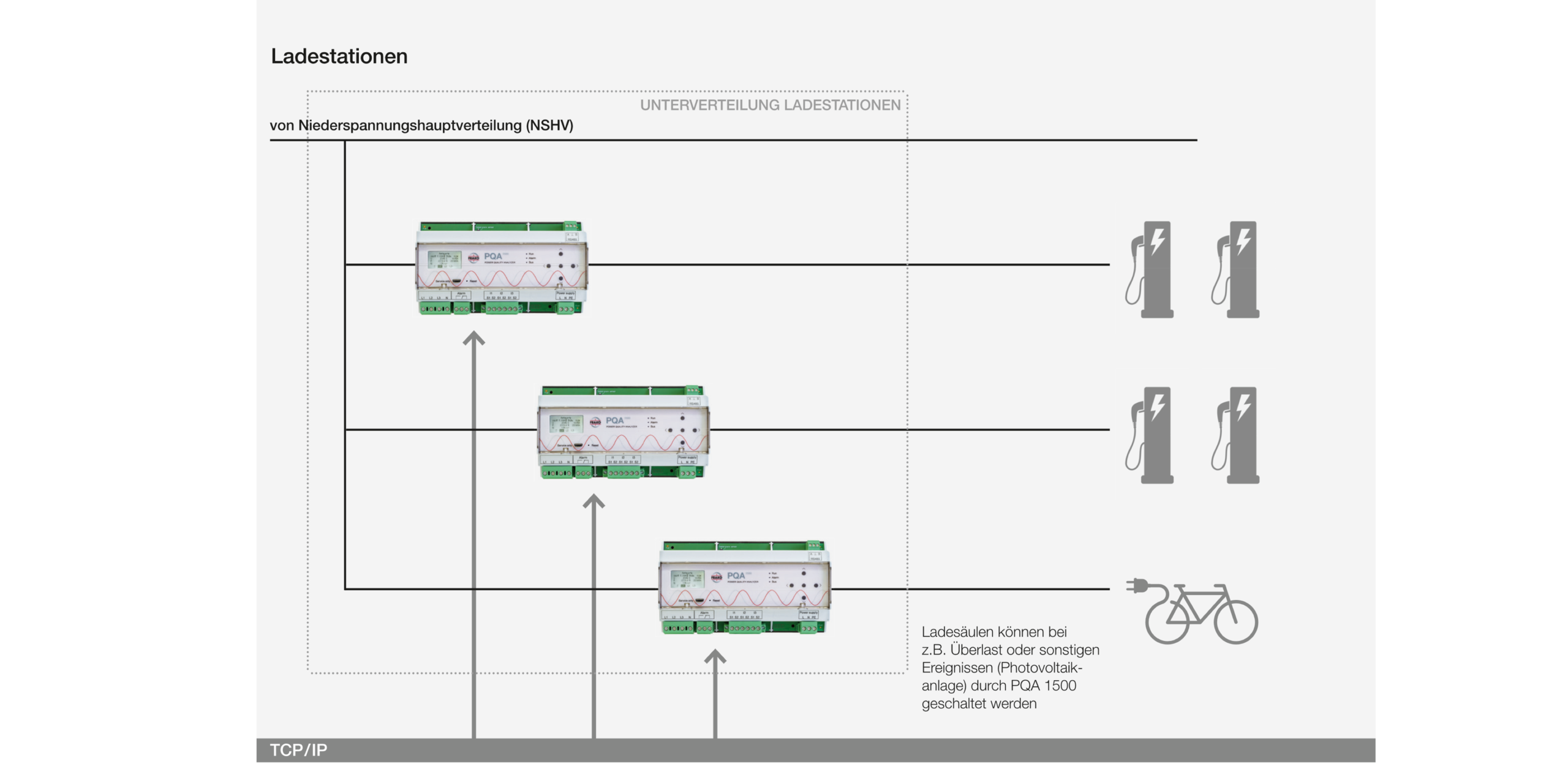

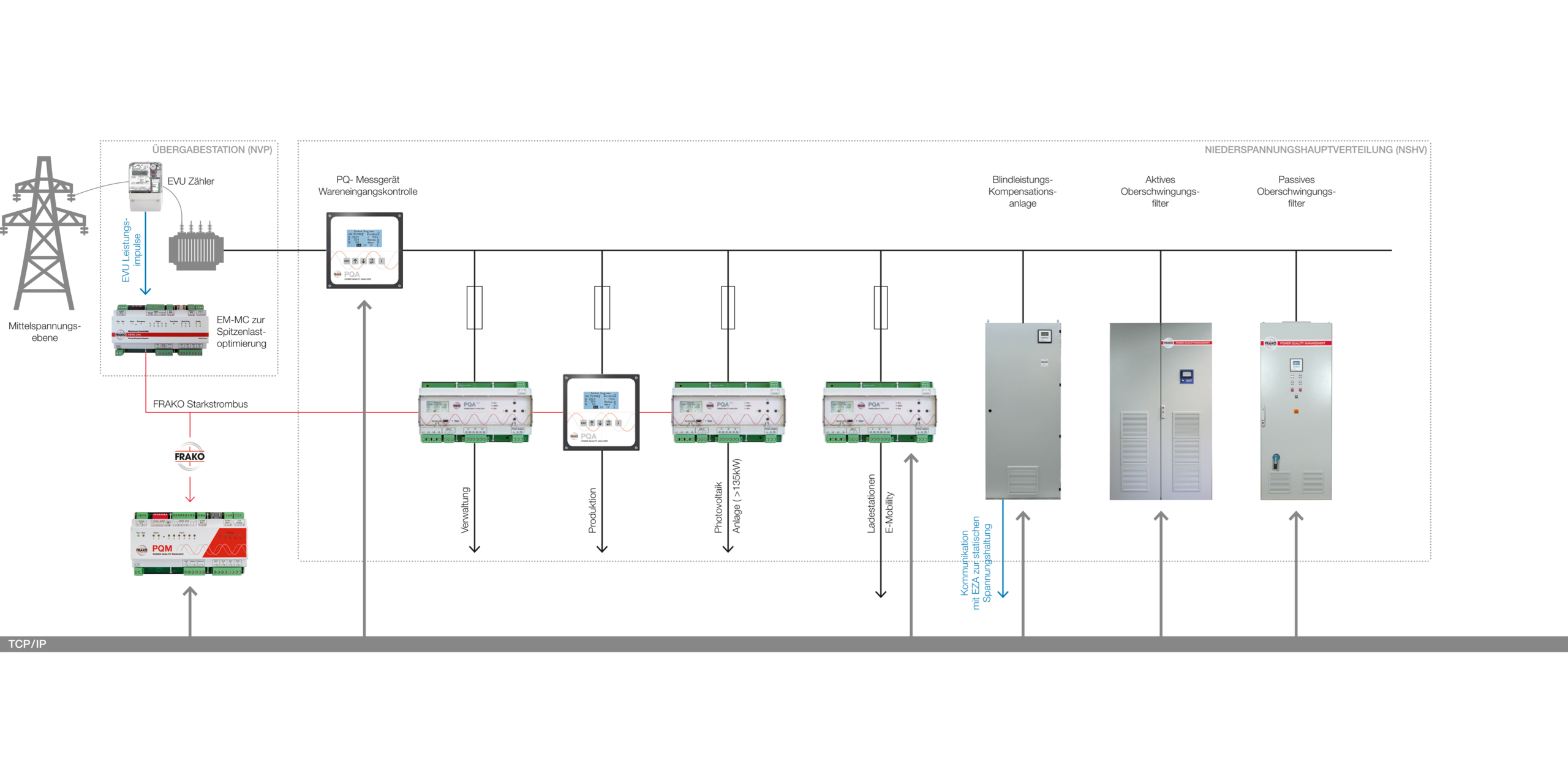

Application Example of the PQA 1500
